Royall 8150 Indoor Wood Furnace,150,000 btu

Our smallest residential indoor wood furnace puts out an amazing amount of heat with a small footprint. The perfect residential furnace for smaller homes under 2,000 sq feet in area. The Royall furnace series provides, even, whole house comfort and the reliabilty to keep you comfortable no matter what mother nature throws at you

8150 Wood Furnace Specifications:


• 48" x 24.5" x 42" (HxWxD)
• 41.25" Flue Center To Ground
• 10 and 12 ga Steel Construction
• Quality Powder Coated Finish
• (4) Rocker Grate System
• 50 cfm Forced Draft Fan


Download the 8150 Specification Sheet

Download the Furnace User Manual


• 7.4 Cu ft Firebox Capacity

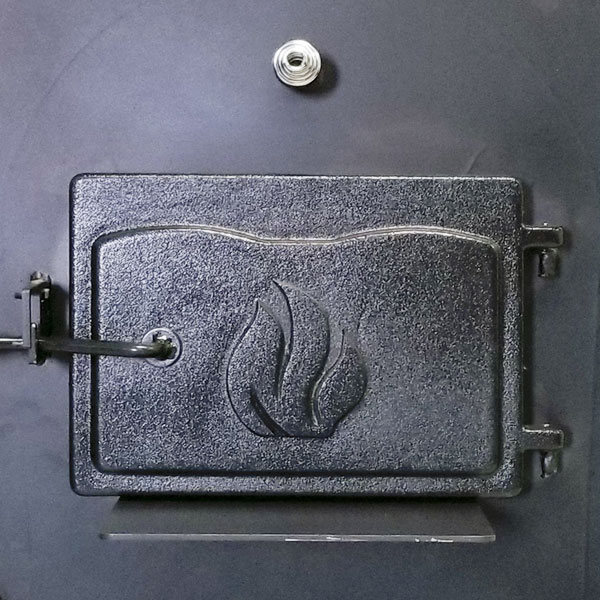

• 10" x 14" Fuel Door
• 5" x 7" Ash Removal Door
• Full Firebrick lining
• 8" Collar, 6" Flue
• 595 lbs (approximate)


Purchase the 8150 Wood Furnace

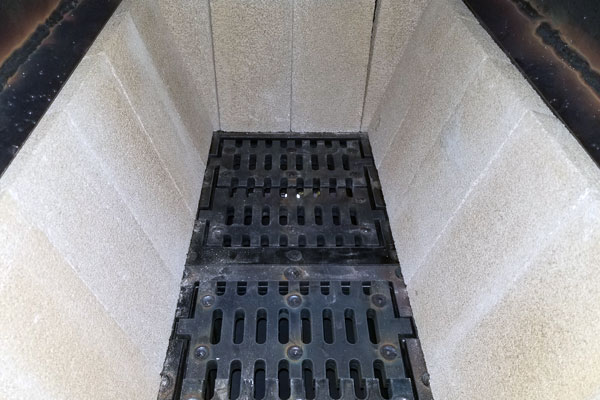

Furnace Rocker Grate System and Firebrick

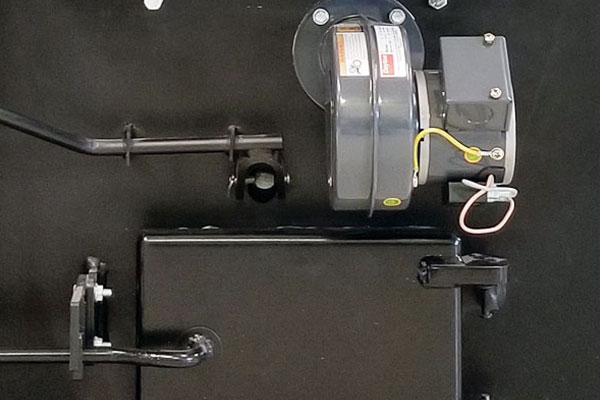

Close Up Furnace View

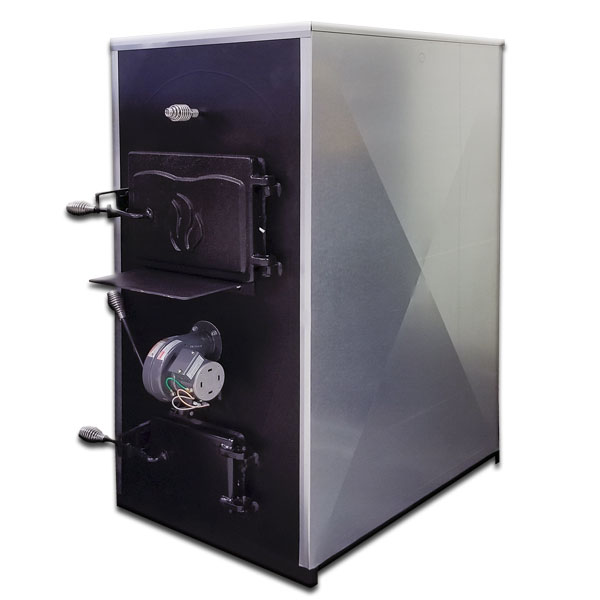

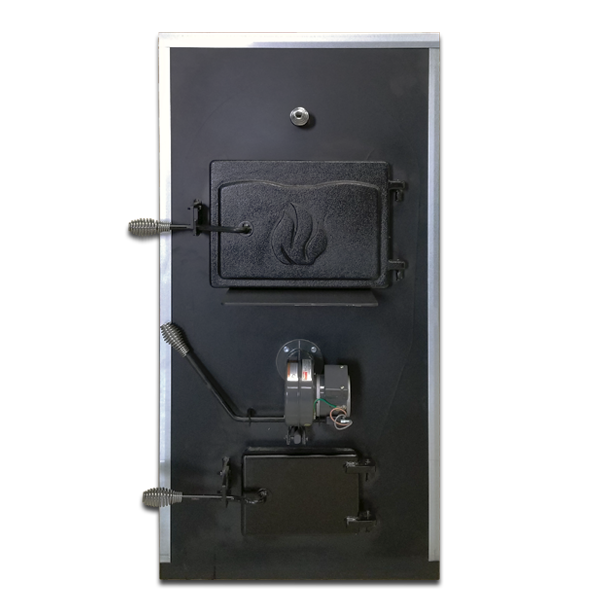

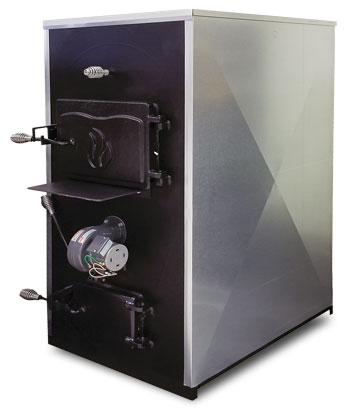

Royall 8150 Indoor Wood Furnace

Heat Your Home Efficiently With High Performance Wood Furnaces From Royall


Looking For Replacement Parts? Just Click!

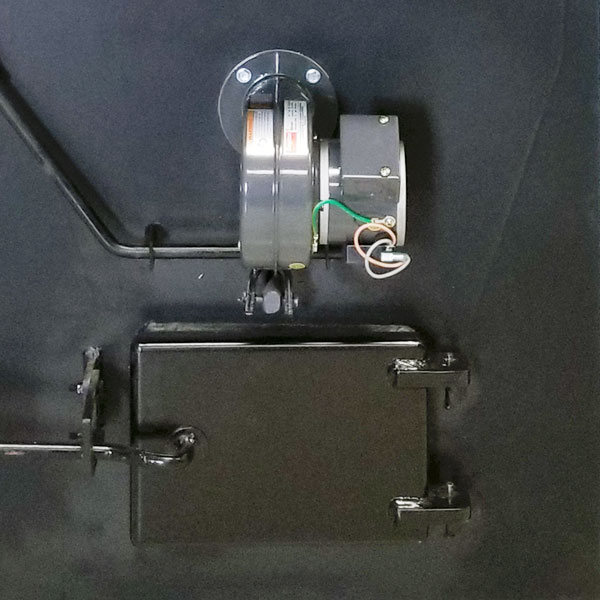

50 cfm Draft Inducer

Buy The 50 cfm Draft Inducer Fan

Furnace Fan Limit Switch

Buy The Furnace Fan Limit Switch

Furnace Fan Control

Buy The Furnace Fan Control Center

Furnace Rocker Grate

Buy The Furnace Rocker Grate

Grate Frame Front

Buy The Furnace Front Grate Frame

Grate Frame
Rear

Buy The Furnace Rear Grate Frame

High Temp Firebrick

Buy The Furnace Firebrick

Special Angle Cut Firebick

Buy The Furnace Angled Firebrick
